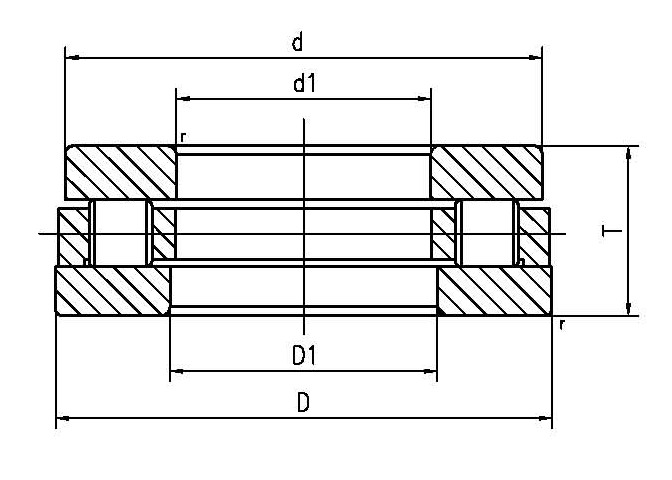

| 外形尺寸(mm) | 基本負(fù)荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | | d | d1min | D | D1max | H | Rsmin | 動 | 靜 | Old_spec | Designations |
| 100 | 103 | 150 | 150 | 38 | 1.1 | 226 | 830 | 800 | 1100 | 2.44 |
| 100 | 103 | 170 | 170 | 42 | 1.5 | 327 | 1520 | 760 | 1000 | 4.23 |
| 100 | 103 | 210 | 210 | 50 | 3 | 640 | 2480 | 670 | 900 | 9.53 |
| 100 | 100.2 | 190 | 190 | 39 | 1.5 | 451 | 2090 | 720 | 960 | 5.11 |
| 110 | 110.2 | 200 | 200 | 39 | 2.1 | 460 | 2195 | 990 | 1300 | 5.43 |
| 110 | 111 | 230 | 230 | 60 | 3 | 635 | 2640 | 720 | 960 | 13.7 |
| 120 | 120.2 | 155 | 155 | 25 | 1 | 146 | 680 | 950 | 1400 | 1.36 |
| 120 | 123 | 170 | 170 | 39 | 1.1 | 255 | 900 | 900 | 1300 | 2.94 |
| 120 | 100 | 215 | 215 | 30 | 1.1 | 451 | 2471 | 850 | 1200 | 5.03 |
| 120 | 116 | 250 | 250 | 78 | 4 | 810 | 2320 | 800 | 1100 | 20.9 |
| 130 | 133 | 190 | 190 | 45 | 1.5 | 380 | 1300 | 670 | 900 | 4.29 |
| 150 | 153 | 230 | 227 | 50 | 3 | 553 | 2370 | 800 | 1100 | 8.22 |
| 150 | 150.3 | 300 | 300 | 35 | 2.1 | 698 | 4330 | 840 | 1100 | 11.3 |
| 153.988 | 153.988 | 228.6 | 227.6 | 50.8 | 4.76 | 426 | 1630 | 800 | 1100 | 7.7 |
| 177.8 | 180 | 254 | 253 | 50.8 | 3.5 | 575 | 2526 | 700 | 950 | 10 |
| 180 | 183 | 280 | 277 | 54 | 3 | 803 | 3717 | 680 | 900 | 13.4 |
| 190 | 193 | 240 | 237 | 37 | 2 | 316 | 1398 | 800 | 1100 | 4.1 |
| 200 | 203 | 250 | 247 | 37 | 1.1 | 310 | 1400 | 700 | 900 | 4.4 |
| 200 | 204 | 277 | 280 | 62 | 2 | 670 | 2490 | 500 | 750 | 12.4 |
| 220 | 225 | 420 | 420 | 130 | 6 | 2380 | 8095 | 380 | 560 | 94.2 |
| 240 | 244 | 340 | 335 | 78 | 2.1 | 990 | 3765 | 380 | 560 | 24.1 |
| 240 | 245 | 440 | 435 | 122 | 6 | 2360 | 10770 | 300 | 400 | 89.5 |
| 260 | 264 | 360 | 355 | 79 | 2.1 | 1045 | 4170 | 350 | 600 | 26.4 |
| 500 | 505 | 670 | 665 | 135 | 5 | 3400 | 17600 | 140 | 190 | 153 |
| 530 | 535 | 640 | 635 | 85 | 3 | 1739 | 9920 | 160 | 200 | 57.8 |
| 530 | 532 | 710 | 708 | 82 | 5 | 2280 | 17800 | 220 | 290 | 96.6 |
| 560 | 565 | 750 | 745 | 150 | 5 | 3900 | 20800 | 120 | 170 | 198 |
| 600 | 602 | 860 | 860 | 125 | 6 | 3870 | 12980 | 130 | 180 | 264 |
| 670 | 672 | 900 | 900 | 103 | 6 | 3530 | 26500 | 160 | 200 | 200 |
| 710 | 714 | 850 | 848 | 63 | 4 | 1440 | 13660 | 240 | 300 | 79 |
|
